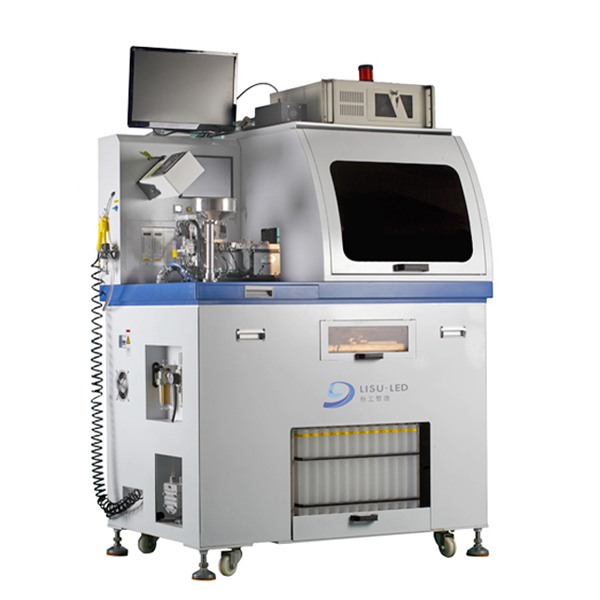

For a variety of SMD LED: such as single 0603,0805,1010,1515,020,3014,4014,2121 3535,3020,3528 5050,5630,5730,7020,7030, etc., double, triple crystal testing and classification;
Relying on Japan's advanced concept design, with Taiwan's high-precision spectroscopic computer systems;
Standard equipped with advanced precision and stable transmission system, allows spectroscopic more quickly and accurately;
Simple operation, the interface has an affinity. Color control system uses PLC plus man-machine interface, real-time monitoring machine running;
With industry recognized high quality tank plate feeding mechanism and the like cam splitter machine stability and service life doubled;
Per hour maximum production capacity of up to 38K.
Applicable to a variety of patch silicon wheat: such as 0420, 0405, 3012, and so on, before, back into the sound of the test and classification;
Relying on Japan's advanced concept design, with Lou's GAOKE sorting system;
Fast, stable and advanced transmission system can make the classification more accurate;
The operation is simple, the interface has affinity. Control system using PLC man-machine interface, real-time monitoring of the running state of the machine;
The industry recognized high-quality collocation vibration disc feeding mechanism and cam life multiplication.
Applicable component model | Such as 0603、0805、3014、3020、3528、5050、5630、010、020、215、335etc. | |||
Component supply model | Round smooth automatic feeding | |||
Test sation number | 1(plus accessories can be measured 2) | |||
Capacity | Type:5050,5630 | Type:010,020,215,335 | Type:0603,0805 | Type:3014,3020,3528 |
Max:28K PPH | Max:24K PPH | Max:28K PPH | Max:30K PPH | |
Sortable number | 128 Bin(optional 256 Bin) | |||
Dimensions | 1200(W) × 800(D) × 1900mm(H) | |||
Gas source | 0.5–0.6MPa | |||
Power supply | AC220V 50/60Hz(Power 2.5KW) | |||
Weight | 500kg | |||
Application materials | Various SMD-LED | |||
Operation screen | 7 inches、languages(Chinese、English) | |||
Environmental conditions | Temperature:0-35℃ Humidity:65% or less(No corrosive and gases,fly ash and other harsh environments) | |||
Applicable component model | Such as 0603、0805、3014、3020、3528、5050、5630、010、020、215、335etc. | |||
Component supply model | Round smooth automatic feeding | |||
Vacuum source | Built-in vacuum pump | |||
Capacity | Type:5050,5630 | Type:010,020,215,335 | Type:0603,0805 | Type:3014,3020,3528 |
Max:36K PPH | Max:30K PPH | Max:36K PPH | Max:42K PPH | |
Optional accessories | Imaging system,Mixing detection systems,Electrical test systems | |||
Dimensions | 1080(W) × 800(D) × 1900mm(H) | |||
Gas source | 0.5–0.6MPa | |||
Power supply | AC220V 50/60Hz(Power 2.0KW) | |||
Weight | 500kg | |||
Application materials | Various SMD-LED | |||
Carrying tape | 8mm,12mm | |||
Sealing tape way | Reapeatedly pressing sealing | |||
Operation screen | 7 inches、languages(Chinese、English) | |||
Environmental conditions | Temperature:0-35℃ Humidity:65% or less(No corrosive and gases,fly ash and other harsh environments) | |||
